OpenTracing Spring Boot Instrumentation

A blog post by Pavol Loffay

apm | jaeger | opentracing | tracing



In this demo series we are going to look at how simple it is to instrument various Java frameworks using OpenTracing. You will see that it requires minimal changes to the application code. In the last demo we will have microservice apps deployed on Kubernetes and all services will be traced with an OpenTracing compliant tracing system.

In this first demo we are going to develop and trace a simple Spring Boot app.

Create a web application

First let’s write a simple web app. Or better, let’s generate it! All we have to do is just to select a web dependency.

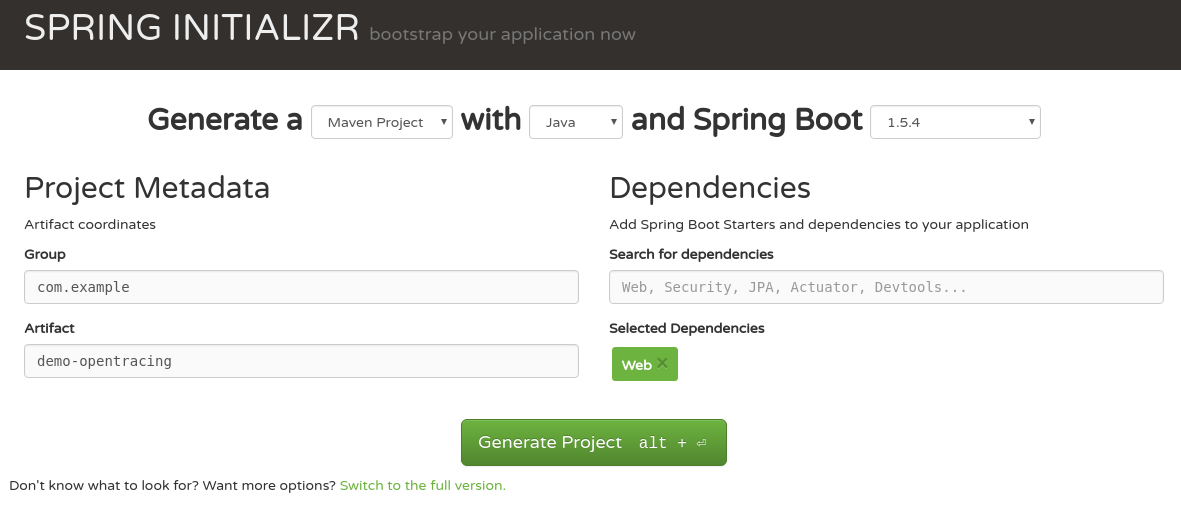

spring initializr
Figure 1: Spring boot generator.

Now the application is generated, but it does not contain any web controller. We are going to implement a simple controller with two methods. One will return a greeting and the other creates HTTP request which calls hello endpoint. This demonstrates simple request chaining between services. Do not worry all the code is on GitHub. At the bottom of this article you will find all necessary links.

Hello Controller:
@RestController
public class HelloController {

    @Autowired
    private RestTemplate restTemplate;

    @RequestMapping("/hello")
    public String hello() {
        return "Hello from Spring Boot!";
    }

    @RequestMapping("/chaining")
    public String chaining() {
        ResponseEntity<String> response = restTemplate.getForEntity("http://localhost:8080/hello", String.class);
        return "Chaining + " + response.getBody();
    }
}

Now the application can serve requests for URLs http://localhost:8080/hello and http://localhost:8080/chaining. The app is still not instrumented, we won’t see any data coming to a tracing system.

Instrumentation

Instrumentation with OpenTracing integrations is very simple. For Spring Boot there is an auto-configuration which instruments all REST controllers and RestTemplate beans. Just add the following dependency to the classpath:

<dependency>
    <groupId>io.opentracing.contrib</groupId>
    <artifactId>opentracing-spring-web-autoconfigure</artifactId>
</dependency>

This dependency requires only one thing and that is a tracer bean which will be used to report data to the chosen tracing system. If we don’t specify this bean auto-configuration will choose NoopTracer.

Because we are using OpenTracing instrumentation we are not bound to any specific tracing system. We will now show how to first use Jaeger and then switch to Zipkin. We will see that changing the tracing system is just a matter of configuration.

As we mentioned the only tracing configuration needed here is to provide a tracer bean.

Jaeger

To create a Jaeger tracer is very simple. It just requires a sampler configuration and because it is a demo we are going to sample all requests. Note that we are not specifying the URL to Jaeger server. By default it will assume that it runs on localhost.

@Bean
public io.opentracing.Tracer jaegerTracer() {
    return new Configuration("spring-boot", new Configuration.SamplerConfiguration(ProbabilisticSampler.TYPE, 1),
        new Configuration.ReporterConfiguration())
        .getTracer();

Now we can start the Jaeger server using docker run --rm -it --network=host jaegertracing/all-in-one, compile and run our app. When everything is up and running generate some requests to URL’s defined in the previous section.

Open the Jaeger UI on http://localhost:16686:

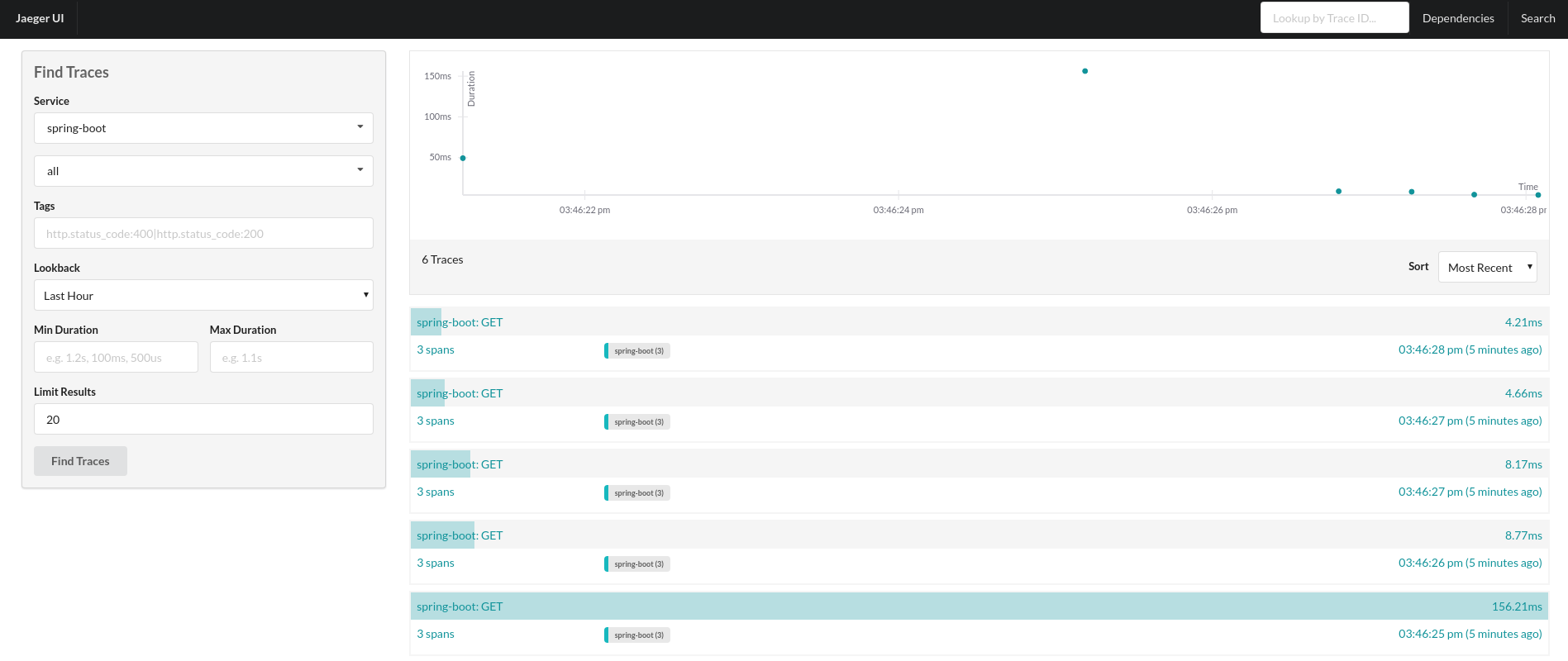

boot jaeger traces
Figure 1: Jaeger showing reported traces.

On the picture we can see traces for the request to the /chaining endpoint. There are three spans: one representing server processing of /chaining, the second a client request to /hello and the third server processing of /hello endpoint.

Zipkin

Now let’s benefit from OpenTracing and switch tracing system with O(1) effort. To do that we just need to provide an instance of Zipkin tracer bean. Do not forget to comment out the Jaeger tracer bean, otherwise instrumentation would not know which tracer to use.

Zipkin configuration is very similar it just requires to know Zipkin URL:

@Bean
public io.opentracing.Tracer zipkinTracer() {
    OkHttpSender okHttpSender = OkHttpSender.create("http://localhost:9411/api/v1/spans");
    AsyncReporter<Span> reporter = AsyncReporter.builder(okHttpSender).build();
    Tracing braveTracer = Tracing.newBuilder().localServiceName("spring-boot").reporter(reporter).build();
    return BraveTracer.create(braveTracer);
}

Zipkin server can be started with docker run --rm -it -p 9411:9411 openzipkin/zipkin. Now we have to rebuild and start our demo app and generate requests.

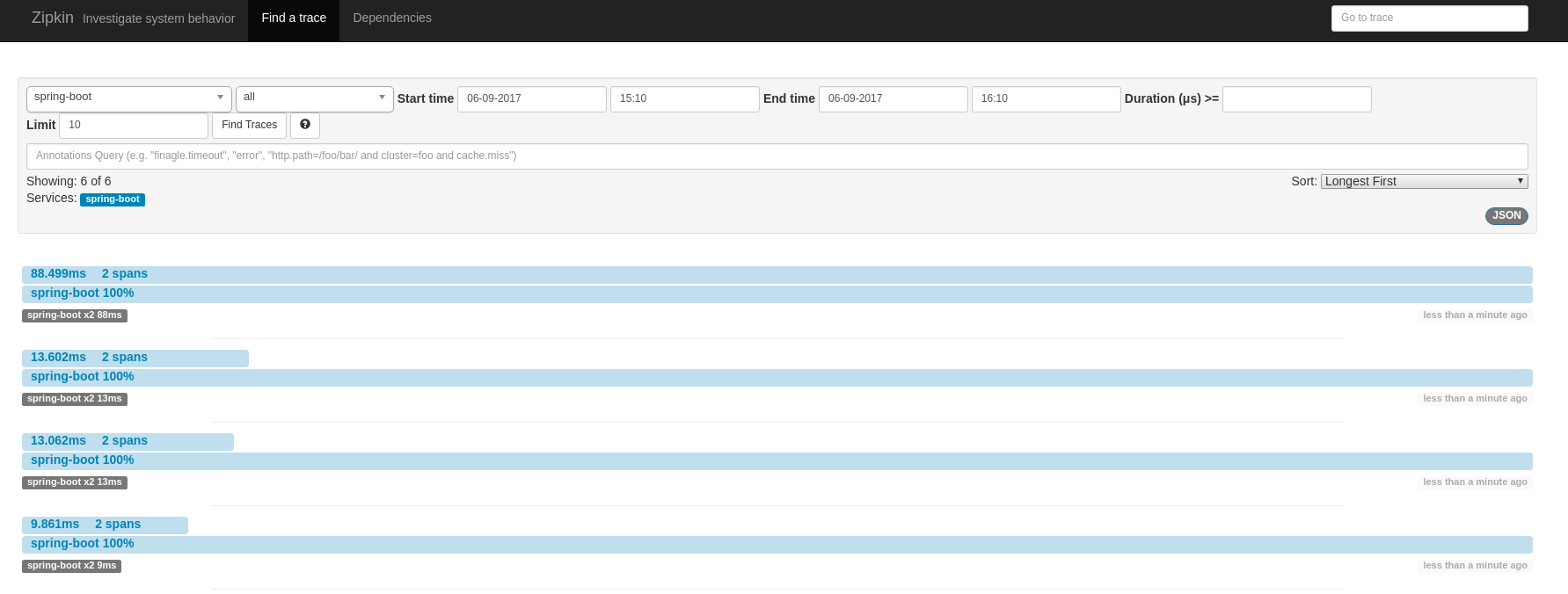

boot zipkin traces
Figure 1: Zipkin showing reported traces.

This screenshot also show traces for invocation of /chaining endpoint. In this case it shows only two spans because Zipkin uses a shared span model which means that client and server invocation of /hello uses the same span. This is a great example that shows how different OpenTracing providers might model and show things differently.

Video

Conclusion

We have seen how simple it is to instrument Spring Boot with OpenTracing. This instrumentation leverages all key OpenTracing benefits like: vendor-neutrality, O(1) change of tracing system or wiring different instrumentations together. In the next blog post we will look at JAX-RS instrumentation and in the last demo all applications will be deployed on Kubernetes and traced using Jaeger’s production deployment with Cassandra cluster.




Published by Pavol Loffay on 13 June 2017
